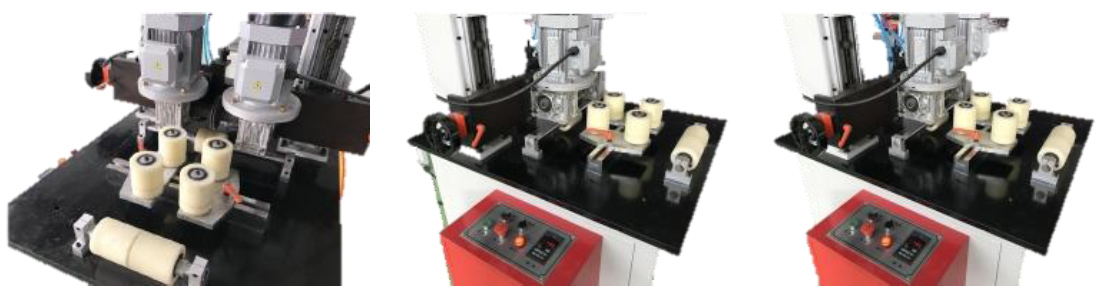

The machine is a dedicated device that used for producing heat barrier profile.Mainly to gullet and hack in the notch of heat-insulated strip and plastic profile for aluminum profile.
To hob in the notch of insulated heat strip of aluminum profile in order to add contact strength between heat-insulated strip and aluminum profile.
Used frequency control to hob, the speed is controlled stepless speed change.
Rotating mode, driver motor+worm gear and shaft for aluminum housing 4 spindle-case drive gulleting cutter to realize gulleting accurately.
Realized automatic of gulleting and knurling.
The overall of machine is sprayed, attractive and durable.
Heat-insulated aluminum profile ingot-gulleting and assembly are synchronous.
Gulleting machine improves the notch of heat-insulated between heat-insulated strip and aluminum profile via hobbing. Compared with not gulleting profiles, the shear force more than 40%, and improved shear force of finished heat-insulated aluminum profile.
| Power supply | 380v 50hz |
| Import power | 0.75*2Kw |
| The Diameter of blade | φ100mm |
| The speed of feeding | 6-90m/min(adjustable) |
| Processing Max. Profile section | 220*280mm(H*W） |
| Exterior dimension | 1000*1000*1580mm |
| Weight | 800kg |
