Working area : 300*300mm
Two dimension aluminum alloy work platform

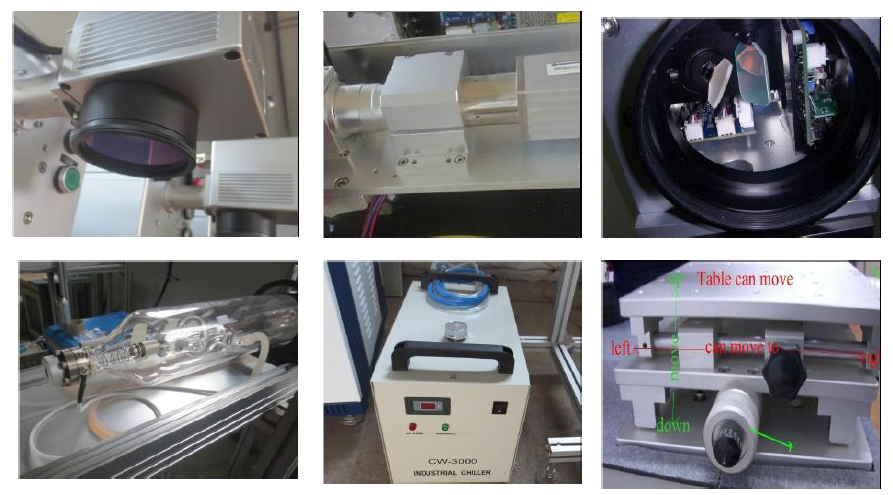

80W co2 glass sealed laser tube, water cooling, lifetime 10000 hours
Singapore Wavelength field lens
High-speed galvanometer

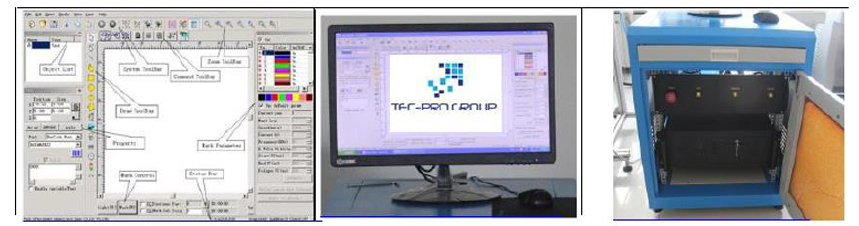

EZCAD control system
Computer included, Win7 system
EZCAD software included
Red light pointer
Water chiller CW3000
Equipment cabinet
Standard plywood package
| Model No. | Working Siz2 | Optical Marking Area | Laser Power | Laser type |
|---|---|---|---|---|
| TEC 80C | 300x300mm | 100*100mm | 80W | Co2 |
| Lifetime | Laser Length | Quality of Laser Beam | Laser Repetition Frequency | Engraving Depth |
| 100,000Hours | 1060nm | m2<1.5 | <100 KHz | 1.2mm |
| Engraving Speed | Minimum Line Width | Minimum Character | Resolution Ratio | Graphic format supported |
| <12000mm/s | 0.01mm | 0.05mm | +- 0.001mm | bmp, jpg, gif, png, tif, ai, dxf, dst etc. |
| Gross Power | Working Votage | Machine Size | Net Weight | Gross Weight |
| <500W | 220V±10%/50Hz10A | 1860x760x1320mm | 180KG | 230KG |
