NSM-600

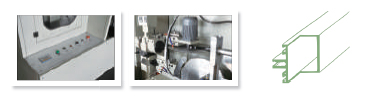

NSM-600 (Notching Saw for aluminum Profile)

Technical Parameter:

Power supply 380V/50Hz

Input power 2×2.2kw

Motor rotary speed 2800r/min

Air pressure 0.5~0.8MPa

Air consumption 60L/min

Saw blade swinging range +45°/-45°

Cutting depth Max 200mm

Cutter feeding speed 0~ 3m/min

Overall dimension 3250×1500×1800mm

Saw Blade specifi cation φ600×4.4×φ30

Z=120

Weight about 1700kg
