GLASS WASHING MACHINE ALUMOURI SYRVWM1800

Structure Feature：

Main drive includes gear drive, frequency control of motor speed and digital display. Brush roller drive of washing part is drove by upper and lower motors with separate belt, which has smooth speed and long service life.

Metal plates of washing part and parts which contacts with water are made of stainless steel.

All transmitting rubber rollers of the machine are vulcanized rubber (They are forbidden to contact with acidic liquids.).

Washing part and drying part can be rose up to 350mm as a whole, which is convenient to wash and maintained.

Three pairs of brushes (Φ150mm) deployment. (Low-E Glass：The upper brushes deploy two hard brushes which can make cylinder rise up and one soft brush, which can wash low-e glass, ordinary reflective glass and sunshine reflective glass. When washing reflective glass, two hard brushes can make cylinder rise up to avoid damaging surface of reflective glass).

There is air filter in entering-wind room of blower. The drying effect is better with high airflow. The whole blower is installed on the workshop, and it can rise up with washing and drying parts, which occupy little space.

The machine has two pairs of air knife, which have large wind and good drying effect.

Metal plates of other parts are painted with top-grade machine paint.

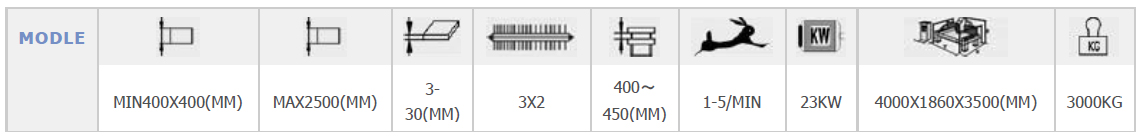

Technical Parameters：

Maximum glass width: 1800mm

Minimum glass dimension: 400mm*400mm (limit to put glass from left and right sides in single row.)

Thickness of glass: 3mm-25mm (digital display)

Speed:0.8-12m/min

Way for changing speed of main drive: variable frequency speed control;

Height of Table: 880mm

Total Power: 28Kw

Water Source: city water, and deionized water as a supplement ( Buyers need to prepare deionized water equipment by themselves. )

Power: 380V 50HZ

Dimension (Length* Width* Height): 6500mm*3500mm*2700mm

Weight: 5120Kg
