GLASS STRAIGHT-LINE MITERING MACHINE SYR10

PRODUCT DESCRIPTION ：

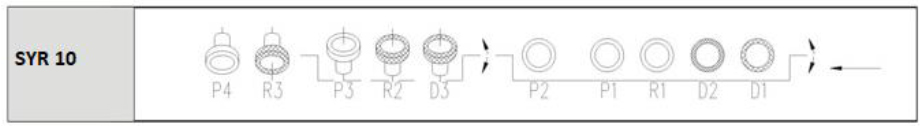

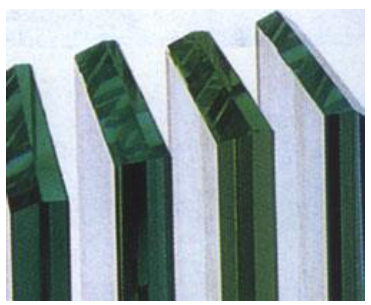

THE MACHINE IS APPLICABLE FOR GRINDING FLAT EDGE, ARRIS OF 45°;MITER CUTTING FOR GLASS OF DIFFERENT SIZE AND THICKNESS THE ROUGH GRINDING, FINE GRINDING, POLISHING FOR FLAT EDGE AND ARRIS BEVELLING IS FINISHED AT ONE TRAVELLING MAXIMUM ANGLE IS 60° .

INDEPENDENT WOOL FELT WHEEL FOR MITERING TO MAKE THE FLAT EDGE MORE SHINING TIMING BELT .

ALLOWS PRECISE AND CONSTANT SPEED OF TRANSMISSION OPTIONAL TO EQUIP WITH ADJUSTABLE .

INPUT TRACK HEIGHT FOR CONTROLLING THE GRINDING AMOUNT ADJUSTABLE FRONT ARRIS SPINDLES .

FROM 0° TO 45°OR FROM 45° TO 0° PLC AND TOUCH SCREEN TO CONTROL MITERING WIDTH,

MITERING ANGLE, REMAINING THICKNESS OF THE MITERING GLASS.
