Technical specifications

Coating type to be removed Soft Coat
Maximum dimensions of glass panes (w x l): 1.5 x 1.5M
Minimum dimensions of glass panes (w x l): 150x300mm (6”x12”)
Glass thickness range: 3-12mm (1/8”-1/2”)
Edge deletion wheel size: 6" OD x 1" BORE
Width 9.8mm (3/8") or 12.5mm (1/2")
Edge Deletion Width As per wheel width
(or optionally, up to 120mm wide with adjustable head option)
Maximum weight per m2 30kg/m2
System working height: To customers specification +/- 25mm(1")
Floor tolerance requirements entire system: 25mm(1")
Electrical requirements: 400V, 50/60Hz, 3 phase
A transformer can be supplied for other voltages if required
Pneumatic requirements: Minimum 6 bar
Language: Machine interface: English
Machine labels: English
Documentation: English

Main parts

POS Quantity Item
6 1 Pcs Air Floatation Table

Air Floatation Table Mounted Version

Edge deletion head mounted on a aluminium and stainless steel air floatation table. The top surface is fitted with engineering plastic boards to provide a flat surface for floatation, additional support wheels are fitted at the point of grind so air floatation is maintained. As with all air floatation tables large lites may require extra support if they overhang the edge of the table whilst being processed. Optionally we can offer larger tables to suit the maximum size glass required or simple additional support castor bars.

Main parts

POS Quantity Item

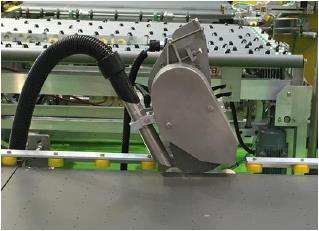

7 1 Pcs Edge Deletion Head

SoftCoat Version – Edge Deletion Head

For deletion of soft coat the grinding wheel itself is a standard burnishing compound proven throughout the glass industry by countless manufacturers of edge deletion equipment and used on both stand-alone machines and those mounted on automatic cutting lines and arrissing lines. Height adjustment of the deletion wheel is controlled by a simple and efficient handwheel, allowing optimum setting for each glass thickness, and fast easy compensation of wheel wear. Constant operating pressure is provided by a spring tensioner
