DMCNC-3000

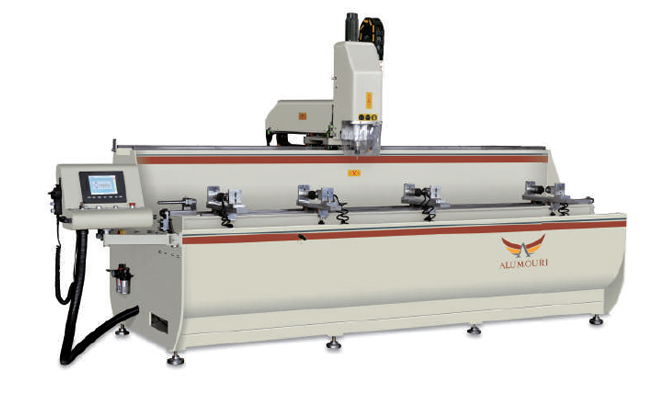

DMCNC-3000 (Aluminum Profile 3+1 Axis CNC Drilling Milling Machine)

Technical Parameter：

Power supply 380V/50Hz

Air pressure 0.5~0.8MPa

Total power 12Kw

Main axis power S6：9Kw, S1：7.5Kw

Max rotary speed 18000/min

X-axis speed 3000mm

Y-axis speed 500mm

Z-axis speed 350mm

X axis speed 50000mm/min

Y and Z axis speed 15000mm/min

Overall dimension 4180×1600×2200mm

Weight about 1400kg

This machine is designed for processing round holes, slots, keyhole etc on aluminum profi le, window-door and curtain wall industry, it is also suitable for processing milling, chamfering,engraving plane surface and other procedure.
