DHCSA-600×5000

DHCSA-600×5000 (Heavy-duty Double-head Cutting Saw)

Technical Parameter:

Input power 4.0Kw×2

Power supply 380V/50Hz

Air pressure 0.6~0.8MPa

Motor rotary speed 2800r/min

Saw Blade specifi cation Φ600×Φ30mm

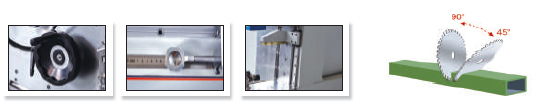

Cutting angle 90°,45°

Cutting length 90°Min 430mm

outer 45°Max 5000mm

Cutting width ×height 200×200mm

Overall dimension 6620×1950×1700mm

Weight about 2700kg

Used for cutting wide aluminum alloy profi le,two head adopt cylinder transmit can achieve head sawing separately, Can sawing 90° and outer 45°.
