DHCSA-450×4400

DHCSA-450×4400 (Double-head Cutting saw for Aluminum & PVC Profile)

Technical Parameter:

Voltage 380v 50Hz

Input power 2×2.2Kw

Motor speed 2800r/min

Air pressure 0.5~0.8MPa

Air consumption 200L/min

Min cutting length 90°350 mm 45° 730 mm

Max cutting length 4400mm

Cutting width 140mm

Cutting height 200mm(140X200mm)

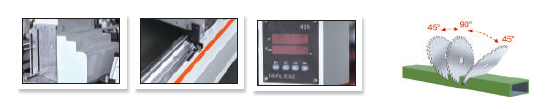

Cutting angle -45°、90°、+45°

Saw blade specifi cation

Ø450×4.1×Ø30mm×120T

Overall dimension 5700×1600×1620mm

Weight about 1450Kg

This machine is designed for cutting any of aluminum curtain wall and window door profi le, palstic and wooden profi le. The cutting angle is - 45° 90° + 45°.
