DHCS-500×6000

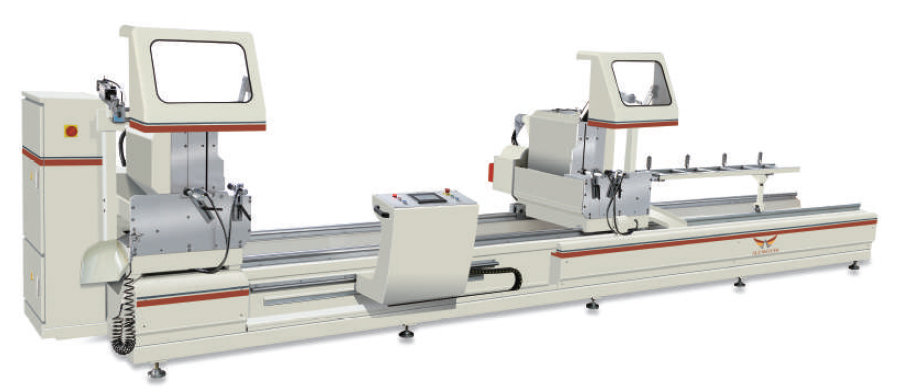

DHCS-500×6000 (Digital Arbitrary-corner Double-head Cutting saw CNC)

Technical Parameter:

Input power 6.5kw

Power supply 380V/50Hz

Air pressure 0.6~0.8MPa

Motor rotary speed 2800r/min

Saw Blade specifi cation Φ500×Φ30

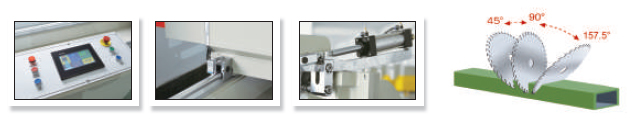

Cutting angle 45°~157.5°

45°Cutting length 760~6000mm

90°Cutting length 480~6000mm

Cutting width ×height 120×230mm

Overall dimension 7800×1800×1530mm

Weight about 2500kg
