DHCS-500×4200

DHCS-500×4200 (Double-head Precision Cutting Saw CNC)

Technical Parameter：

Input power 5.9kw

Power supply 380V/50Hz

Air pressure 0.5~0.8MPa

Motor rotary speed 2800r/min

Saw Blade specifi cation Φ500×Φ30mm

Cutting angle 90°~67.5°~45°

Cutting length 400~4200mm

Cutting width ×height 135×200mm

Overall dimension 5700×1650×1520mm

Weight about 1613kg

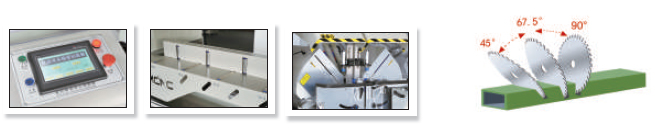

It is mainly used for processing of extra-wide aluminum profile, also can be used to process aluminum profile vertical end-face material -discharging.Adopt servo motor to drive reducer, implement saw blade rotating positioning at any angle between 45°and 90°.
