DHCA-600×5300

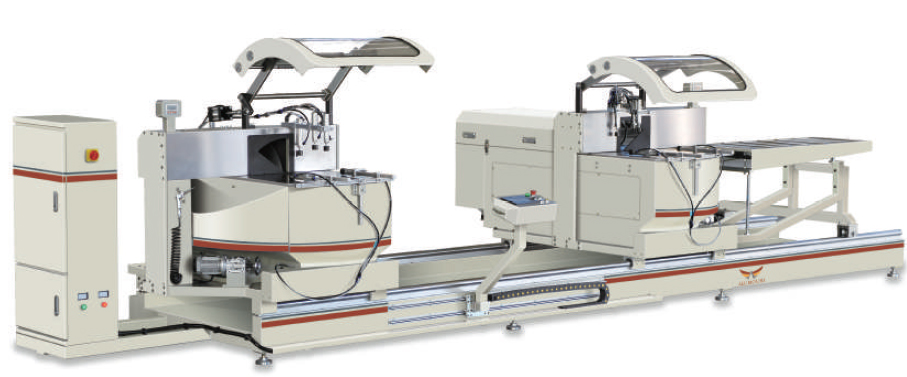

DHCA-600×5300 (Arbitrary Angle Double-head Cutting Saw CNC)

Technical Parameter：

Power supply 3 Phase four wire 380V 50Hz

Cutting head motor Power 2×3 kW

Rotate speed 2800 r/min

Saw blade swing angle servo motor power 2×0.9 kW

Cutting head horizontal move servo motor power 1.5 kW

Cutting head turn angle motor power 2×0.55 kW

Woring air pressure 0.5~0.8MPa

Saw cutting length max 5300mm

Saw cutting width×height max 500×180 mm 90°

Saw cutting height Max 210 mm 90°

Saw cutting angle blade 45° ~ 90° arbitrary angle

Cutting head 45° ~ 90° arbitrary angle Cutting feed speed

stepless speed regulation 0~ 3m/min

Blade specifi cation φ600×4.4×φ30mm Z=120

Overall size 7500×2450×1700mm

Weight about 5000kg

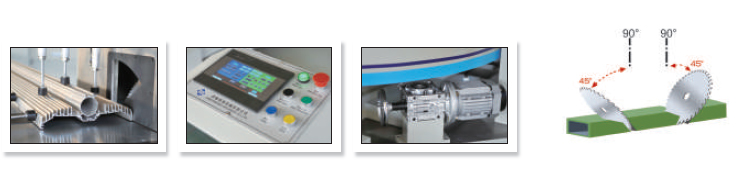

It is mainly used for processing of extra-wide aluminum profile, also can be used to process aluminum profile vertical end-face material -discharging.Adopt servo motor to drive reducer, implement saw blade rotating positioning at any angle between 45°and 90°.
