CAHS-500-CNC

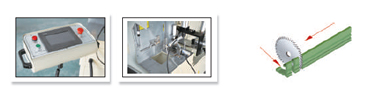

CAHS-500-CNC (Corner Connector Automatic Heavy-duty Cutting Saw)

Technical Parameter：

Power supply 380V 50HZ

Motor power 3.0kw

Motor rotary speed 2800r/min

Working air pressure 0.5 ～ 0.8MPa

Auto feeding length 5 ～ 700mm

Cutting width ×height 135×300mm

Saw blade specifi cation ø500×ø30mm

Contour dimension 1700×1400×1220mm

Weight about 504kg

This machine is mainly used for corner connector of aluminum profile and plastic profile cutting. A single clamping, can realize continuous cutting Angle of 6 m code section.
